WIN 3 Grip is now available for pre-order! Shipped in 45 days!

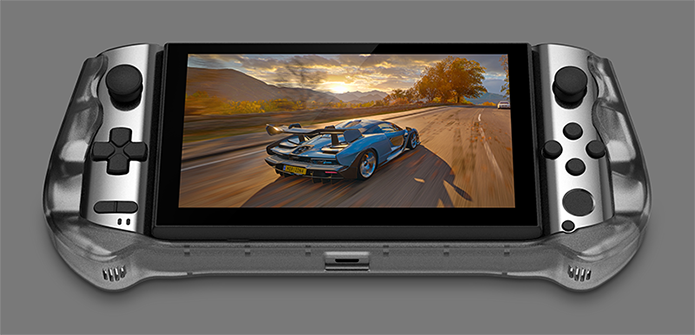

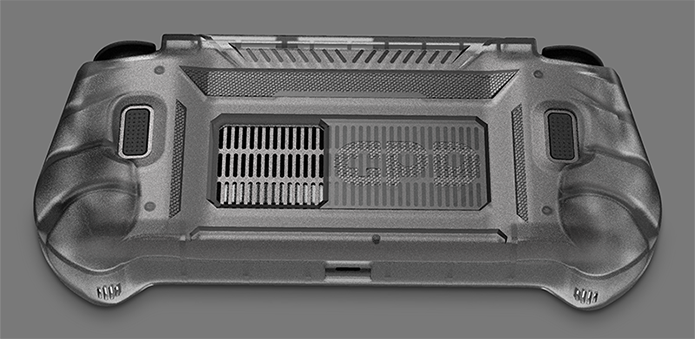

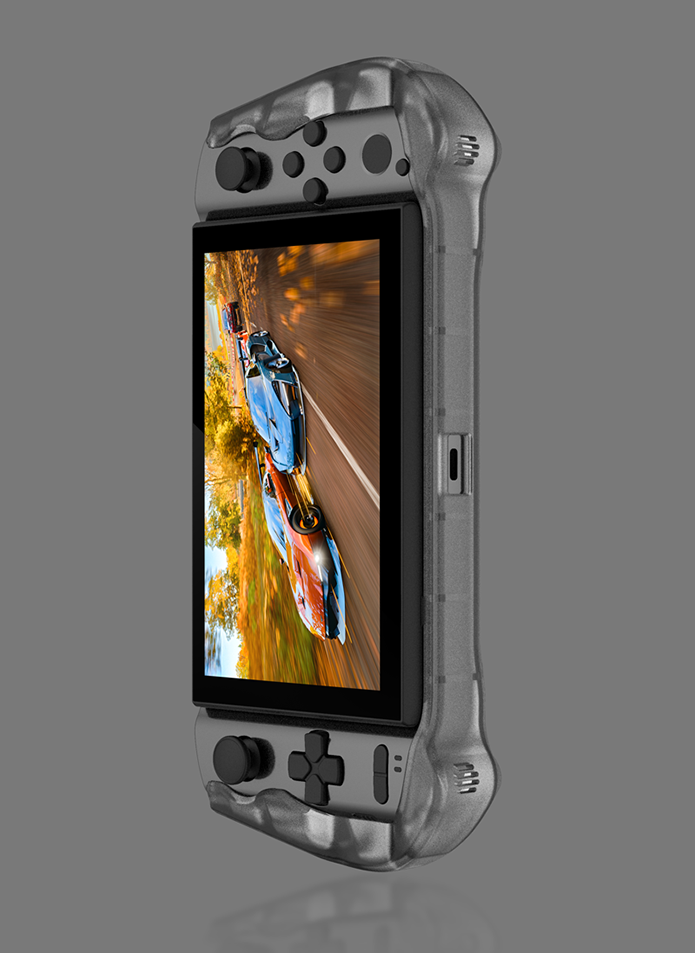

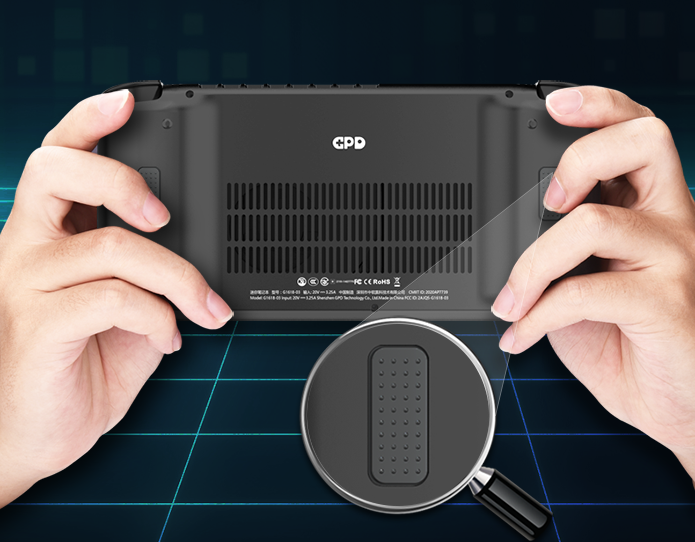

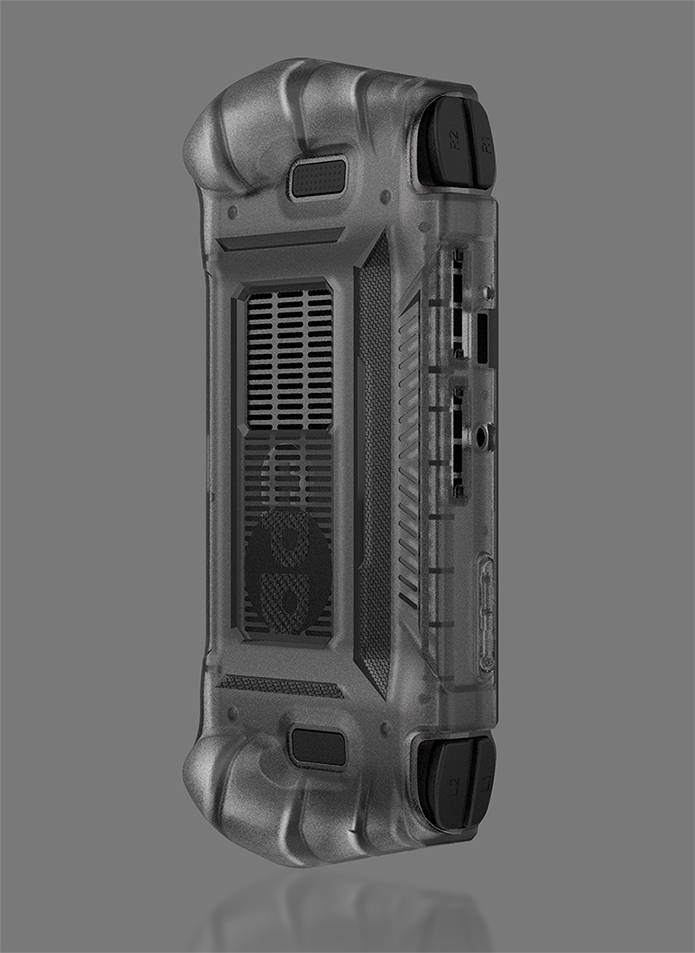

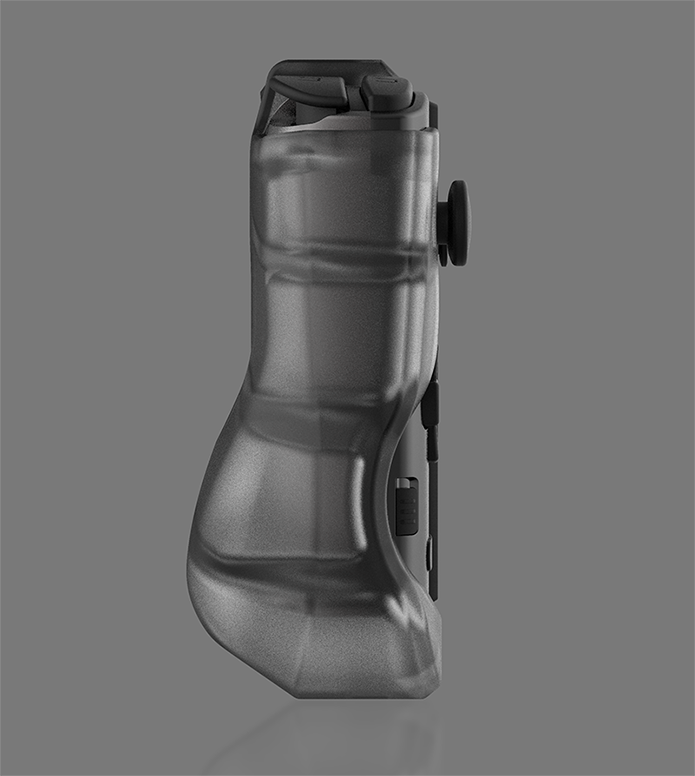

The WIN 3 grip is made of gray and white translucent silicone material, with a frosted surface.

The advantage of frosting with silica gel is to increase thefriction surface between the hand and the machine to avoid slipping.

The silicone material is also very light, which can reduce the overall weight to the greatest extent.

In addition, the translucent gray and white color can restore the color of the machine itself.

If the machine is pure black, the silicone grip is also black; if the machine is silver-black, the overall look is silver-black.

Our purpose of designing this grip is to integrate with the body, rather than a variety of exaggerated collocations.

You will receive the specialized grip of WIN 3. Retail price is $39.9. First 500 buyers that you will own $19.9 preferential price. 500 units were sold out, add another1000 presale quotas will own $29.9 preferential price, When finished it will recover to the normal price $39.9. Estimated shipping time is on July, 2021.

From the first generation of the WIN series, the handheld game consoles created by GPD were all clamshell designed because screen input of the Windows system is not user friendly. However, many users did not like the combination of keyboard + clamshell, and strongly asked us to launch an unibody type handheld game console. For our users, after exploration, we referred to the design of the sliding mecanism of the Sony UX series, incorporated the new backlit touch keyboard, and finally designed the WIN 3. It allows us to renew the design of our Win original handheld game console and break the boundaries with the common cliches of clamshell form factor devices. The specifications of WIN 3 are the best according to the current market, and we will mention them one by one later!

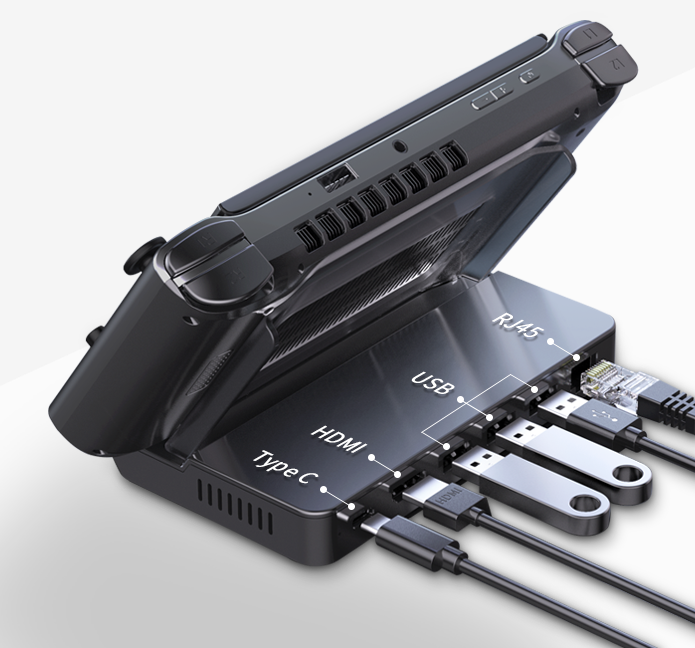

Interface description:

• 3 USB 3.2 Gen2 Type-A ports, up to 10Gbps;
• 1 USB 3.2 Gen2 Type-C interface, up to 10Gbps;
• 1 HDMI 2.0b interface, bandwidth up to 18Gbps, supports up to 32 channels, 48bit maximum color depth, and supports HDR;
• 1 RJ45 network port, 10/100/1000Mbps self-adaptive network card.

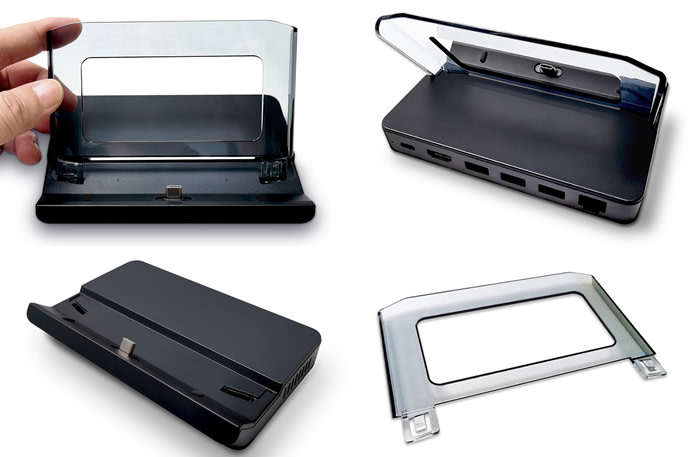

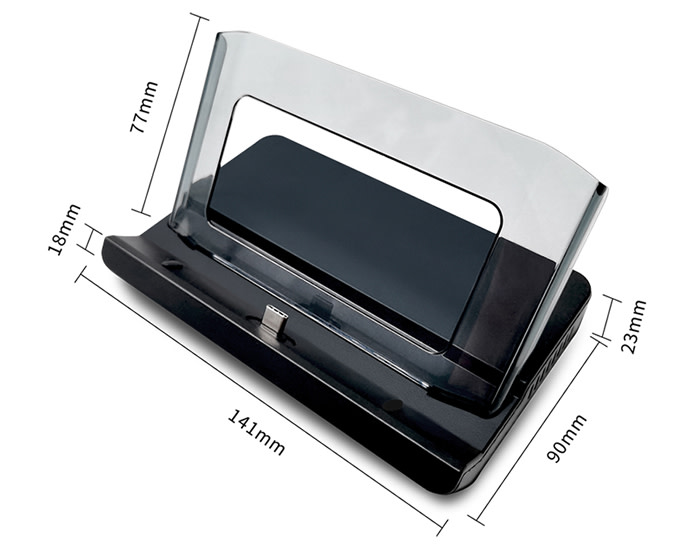

Docking Size

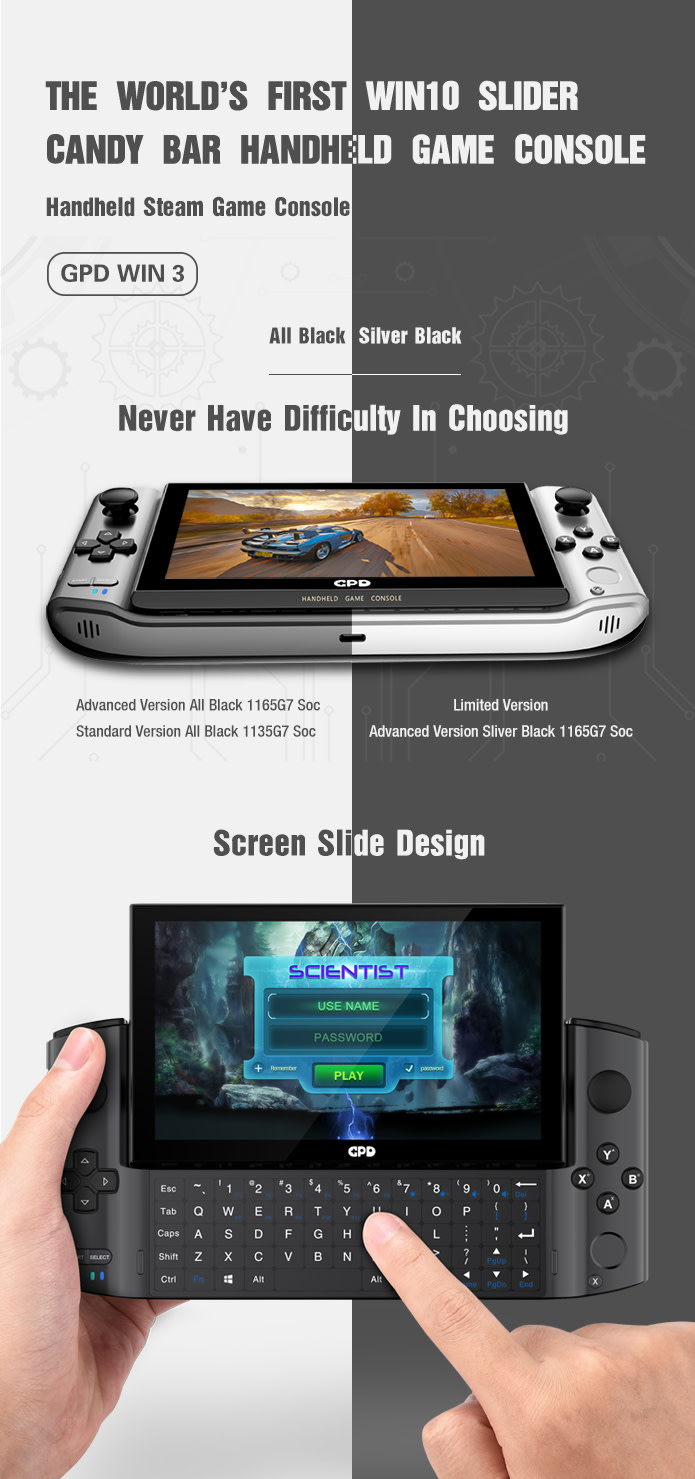

• The world’s first Win10 slider featured unibody handheld game console, and the most complex handheld game console in GPD’s history!
• Most latest AAA-level game masterpiece can run at 60 FPS with tweaks;
• Screen slider design + hidden white backlit touch keyboard with haptic feedback;
• PC-grade turbofan + dual heat pipes for efficient heat dissipation, large displacement back heat blowing design with 8-hole channel;
• Dual vibration motors inside the handles;
• Two ALPS thumbsticks comparable to top joysticks company in Japan’s Seimitsu and Sanwa, native support for L3/R3;
• Analog trigger buttons L2 / R2 allowing better racing feeling with a pressure controlled sensor, as it allows a better  feeling in FPS as well in order to shoot your enemies, offering an immersive experience;
• AAC top three-dimensional linear loudspeaker from Germany, double amplitude enhancement, with a lively sound;
• The shell is made of aviation-grade ABS synthetic resin, with Rockwell hardness of 109R, matte body, great texture;
• 5.5-inch brigtht screen, 268 PPI, H-IPS technology, the 5th generation Corning Gorilla Glass, NTSC: 84% (typ), DC dimming;
• Intel 11th generation Tiger Lake-U series processors, single-core performance surpasses desktop flagship i9-10900K;
• Intel 12th generation Iris Xe Graphics core graphics card, general performance surpasses MX350, even compete in specific tasks with MX450;
• LPDDR4x 4266 memory, available with Intel’s 11th generation Tiger Lake-U processor, offers a maximum memory bandwidth of 86GB/s and have an important role in general performances;
• The new Thunderbolt 4 unified interface doubled bandwidth, natively supports USB 4 and when an external eGPU is installed, the independent display performance is fully utilized, and the frame rate is greatly increased depending the eGFX used;
• The fourth-generation PCIe bus technology, M.2 NVMe 2280 SSD’s read and write and speed are greatly increased, even capable to beat Thunderbolt 4 speed;
• Support Bluetooth 5.0, 3MB/s transmission speed, with local GPS capacity within 1 meter, long-distance communication of 300 meters, up to 7 Bluetooth devices can be connected;

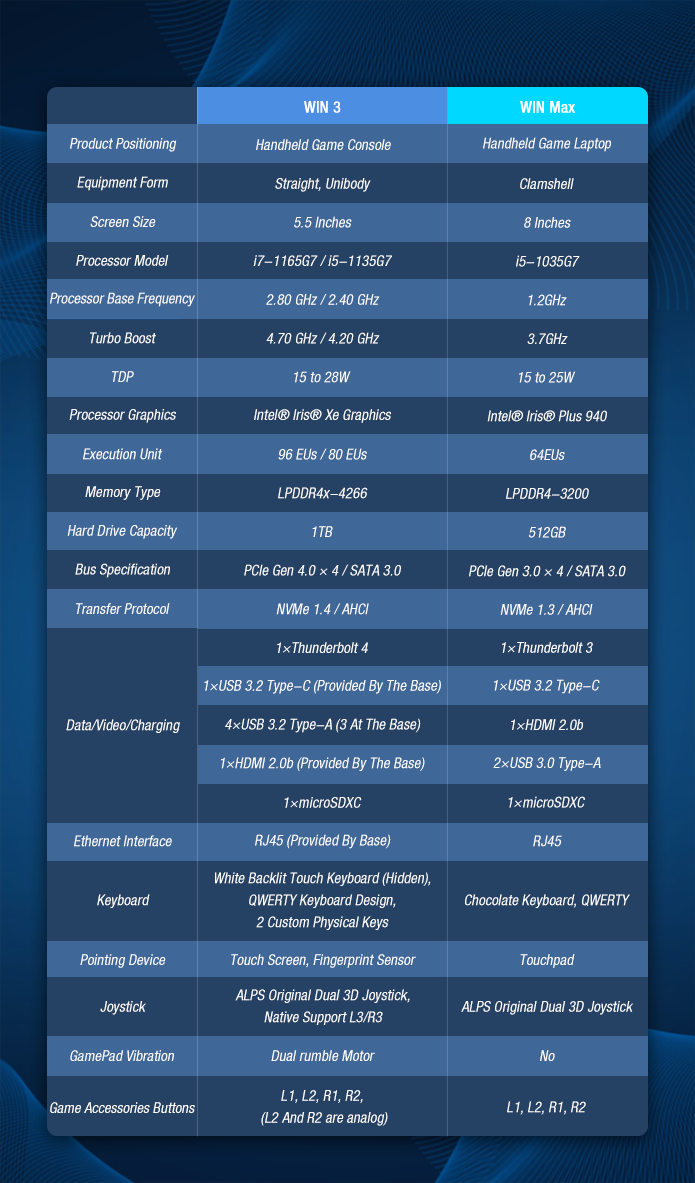

Users who have participated to our previous crowdfunding campaign are no strangers to the WIN Max. The following table is a comparison between WIN 3 and WIN Max:

Unlike the WIN Max, WIN 3 take advantage of the performance of the Intel® Iris® Xe Graphics core graphics card which greatly increase the number of FPS. The following table displays measured data of default game settings at a resolution of 1280×720.

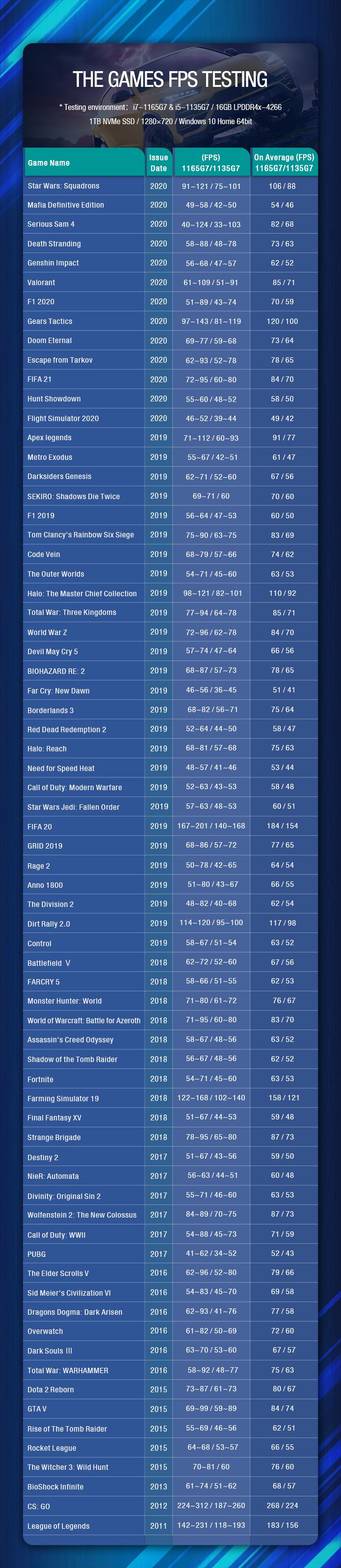

*Testing environment: i7-1165G7 & i5-1135G7 / 16GB LPDDR4x-4266 / 500GB NVMe SSD / 1280×720 / Windows 10 Home 64bit

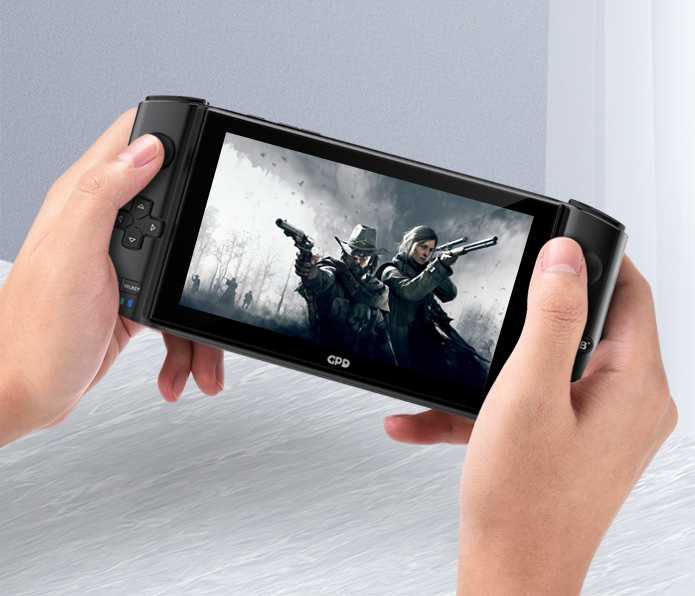

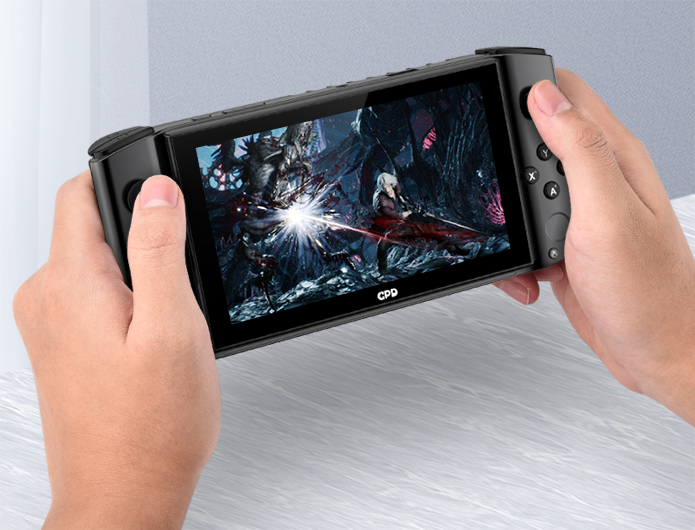

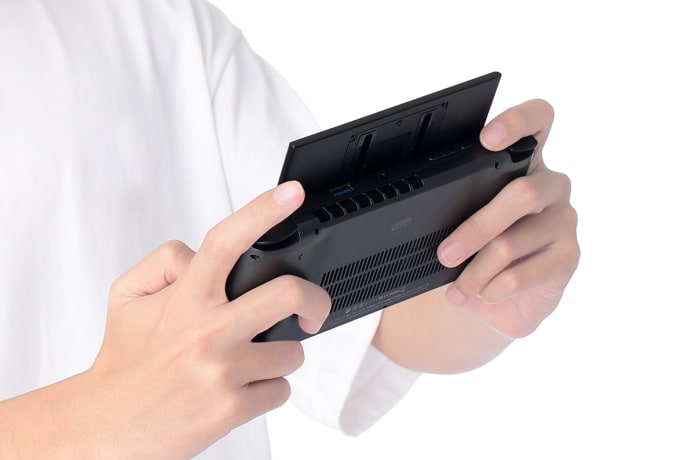

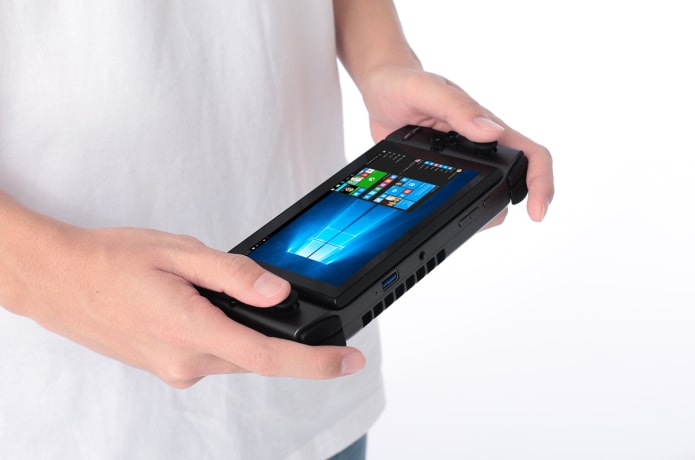

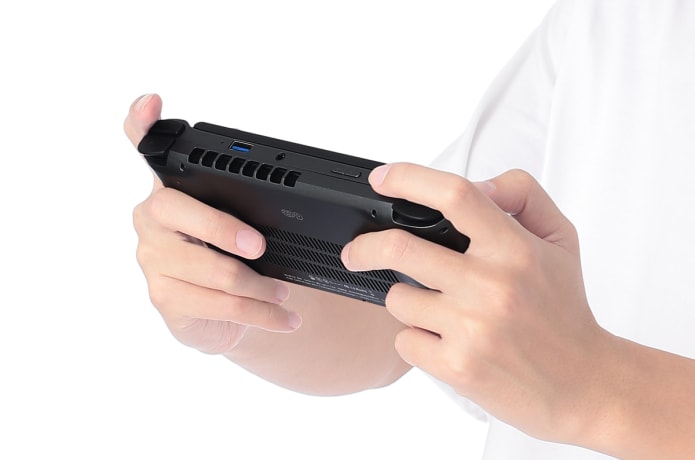

Held with both hands, play games anytime, anywhere.

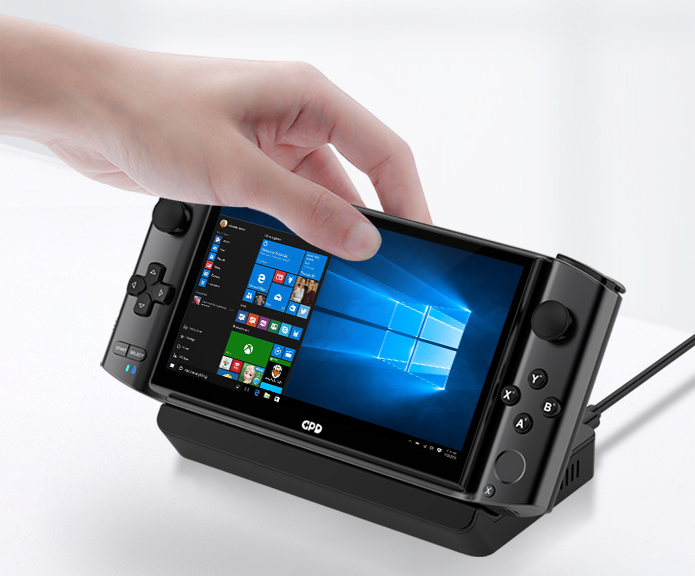

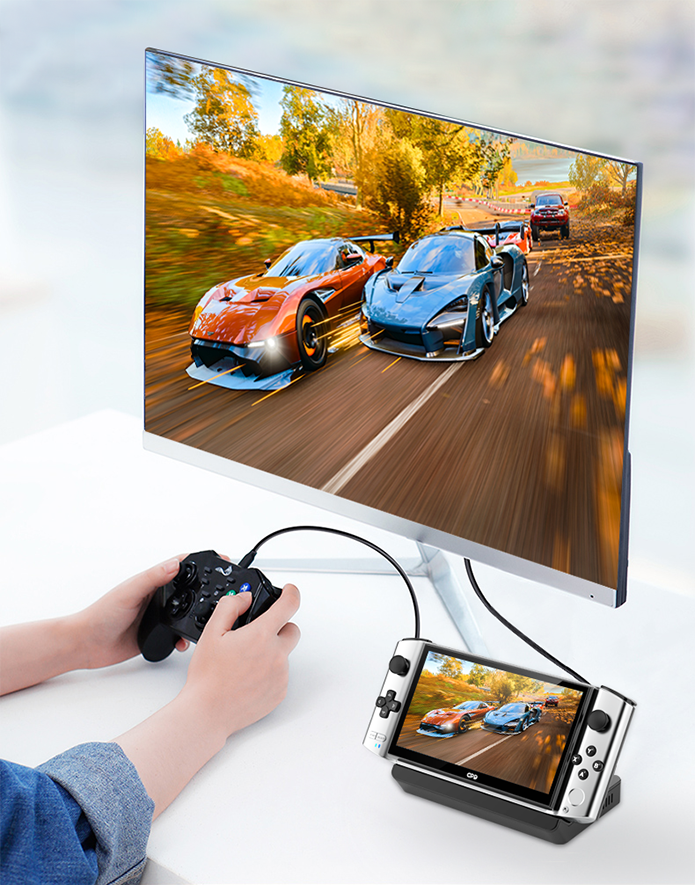

Docking station + device sitting flat on the desktop as a host, with an external monitor, playing games.

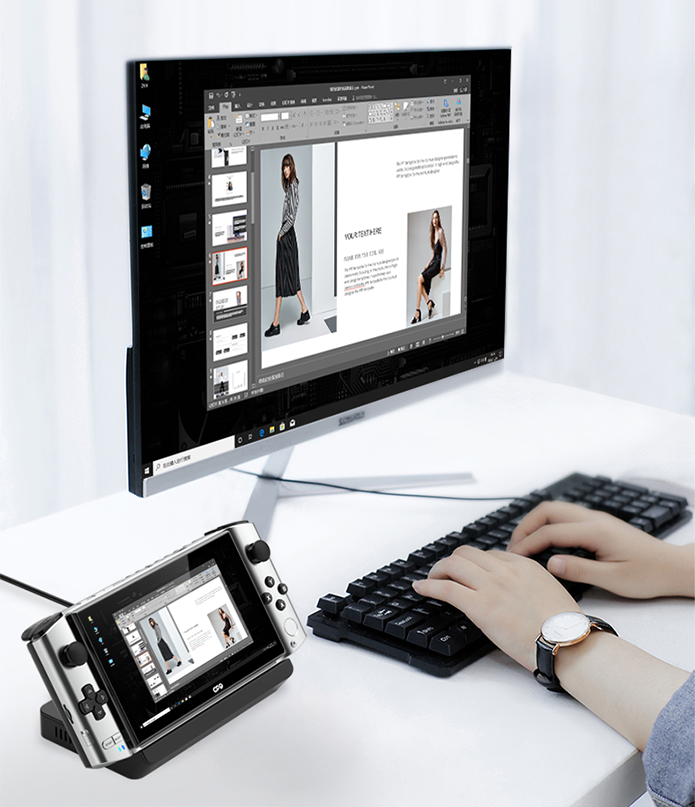

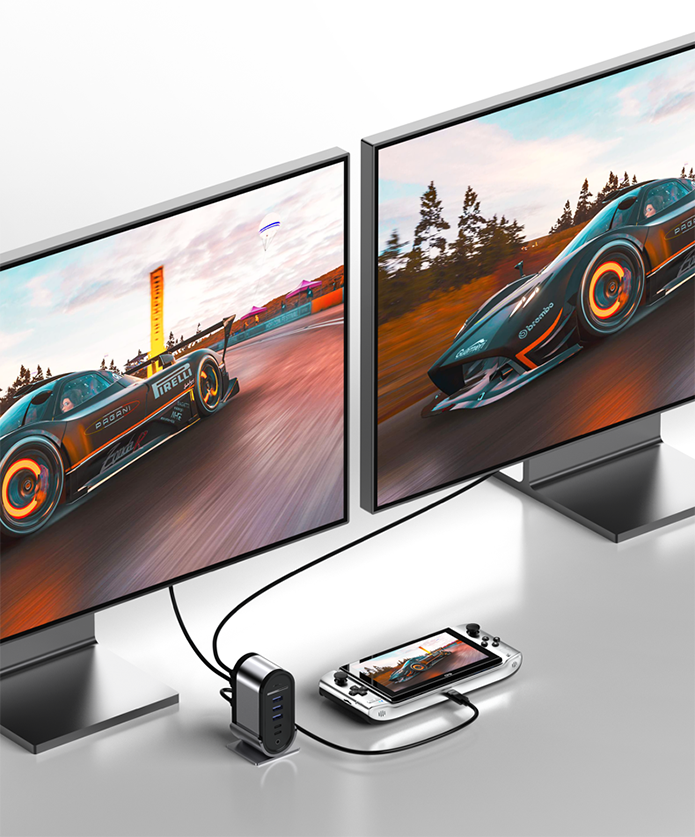

Docking station + device sitting flat on the desktop, linked to an external mouse, keyboard and monitor;

Pure handheld game console players have high requirements for screen size. In example, 3DS XL’s screen is only 4.88 inches, PSV 2000’s one is 5 inches, WIN 1’s one is 5.5 inches, WIN 2’s one is 6 inches, Switch classic’s one is 6.2 inches, Switch Lite’s one is 5.5 inches. Generally speaking, 5.5 inches is the most common size accepted by the majority of handheld game console players.

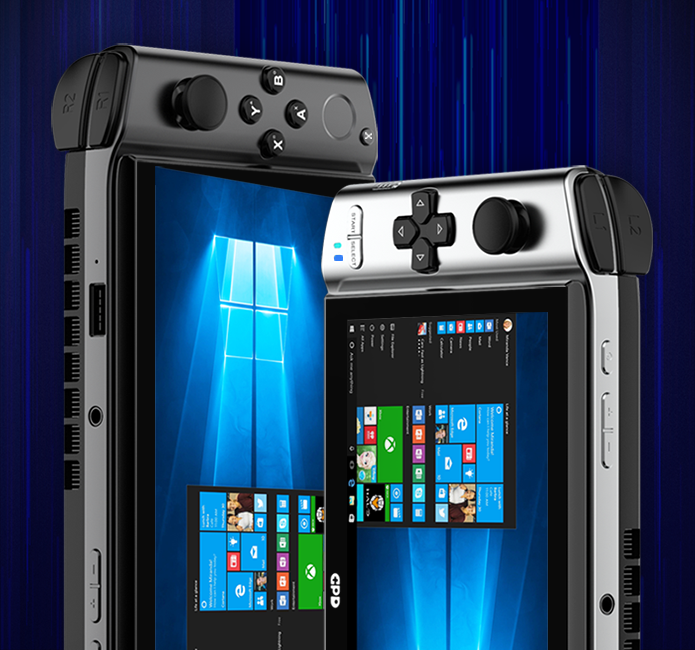

WIN 3 features a 5.5-inch sliding bright screen, NTSC: 84% (typ), resolution 1280×720, 268PPI, and adopts Corning’s fifth-generation Gorilla Glass, DC dimming, so there is no need to worry about the graininess of the screen. If you own or have used a WIN 1, you should be able to have a better understanding of the experience with this screen size compared to new users. In fact, the 5.5-inch screen size of WIN 1 is the most used and reputable in gaming handheld even today!

The main body of WIN 3 still adopts LG-DOW 121H aviation-grade ABS synthetic resin, with Rockwell hardness of 109R and bending strength of 26,000kg/cm2. On the grey version the front side and the lateral sides are silver-gray matte spray, without reflection and with great texture.

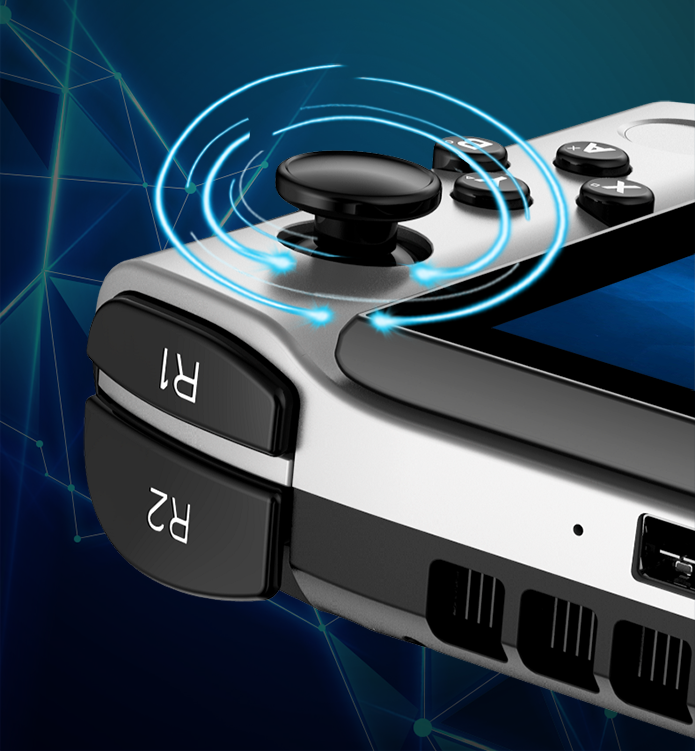

On small size handheld game console, the rocker can only adopt a sinking design, with short stroke, small swing distance, high resistance, and the experience is far from being ideal and often inferior to what external gamepad can offers. WIN 3’s protruding ALPS original dual 3D big rocker has large stroke, large swing distance, low resistance, sacrificing a little bit of responsiveness but greatly improves accuracy. For example in a fighting game, the smoothness is comparable to those of Japan’s top joysticks Seimitsu and Sanwa, and it natively supports L3/R3 functions.

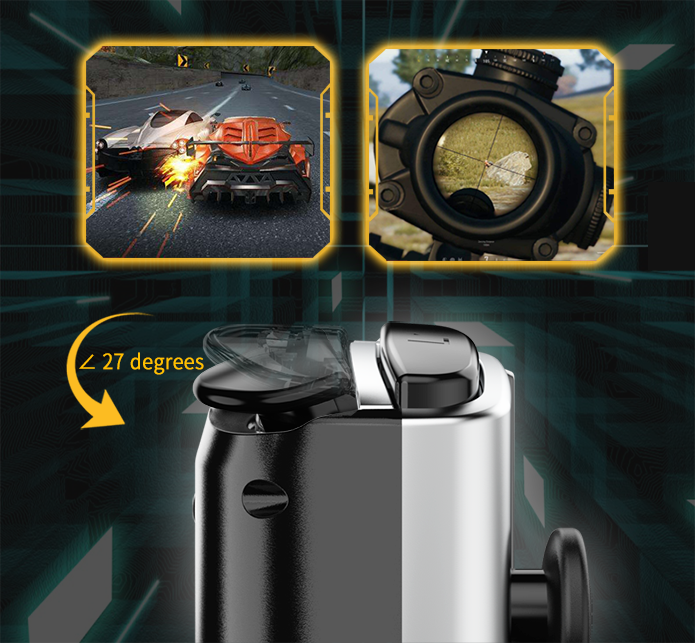

The most popular type of games among players are basically FPS, racing games and sports games. In early GPD’s handheld game consoles, when users were playing racing games, experience wasn’t optimal and quite rough when turning, accelerating, or decelerating. The reason was that the trigger buttons were digital, the signal sent by them was only defined by two states 0 and 1. With the WIN 3, L2 and R2 are changed to analog, with an inclination angle of 27 degrees, which can produce 256 (0 to 255) states and convert the obtained acceleration value into a digital command. If you are an advanced player and are experiencing racing games on the WIN 3, you will notice that experience is greatly improved. The racing will have proper control, shooting will be smoother, just like doing with a real throttle and gun trigger!

WIN 3 is also equipped with dual rumble motors. Its vibration effect will offer you a better immersion during the game. Starting a car engine, shooting a laser gun, controlling a helicopter, etc., everything would feel more real. When shooting, you will feel the gunrecoil, starting an engine will make your body shiver.

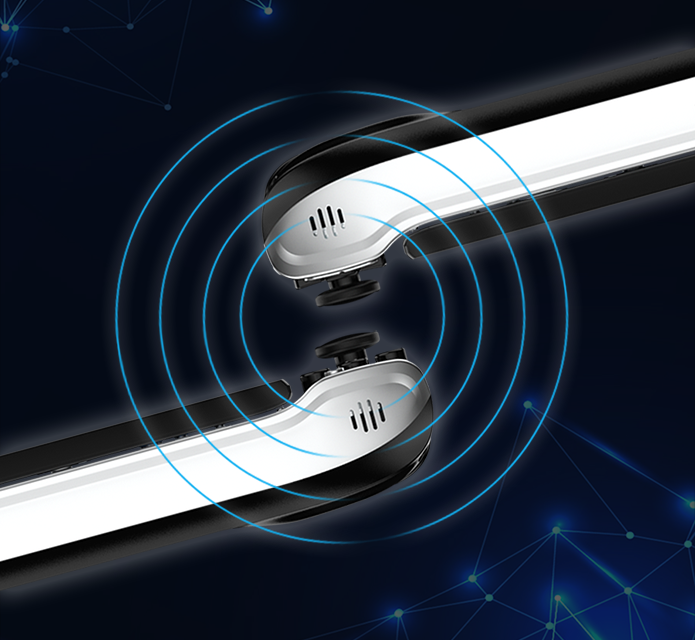

The previous WIN series handheld game consoles adopted ordinary stereo dual speakers, at the end the sound quality was always criticized by users. WIN 3 adopts AAC top stereo speakers from Germany. The sound cavity is built with bass materials and adopts a 0.9cc large sound cavity design. The double coil drives the sub and balances its force while  increase its amplitude. Therefore, the sound is more lively and louder.

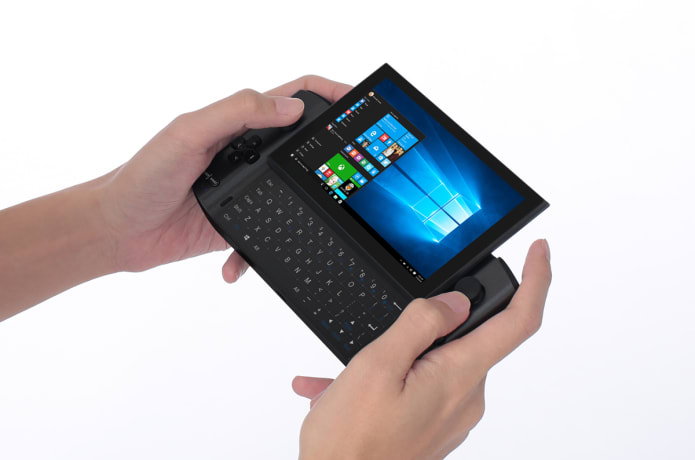

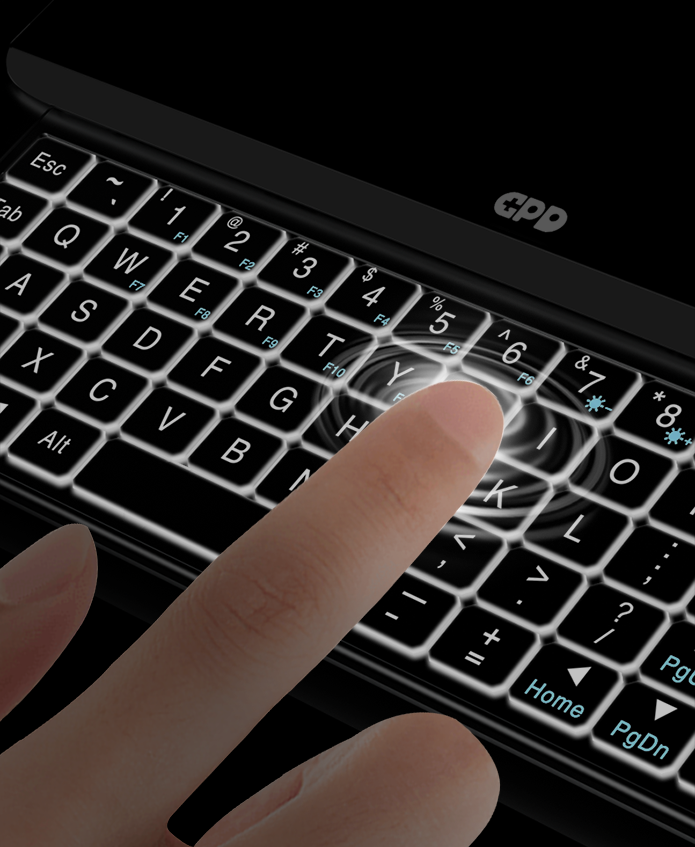

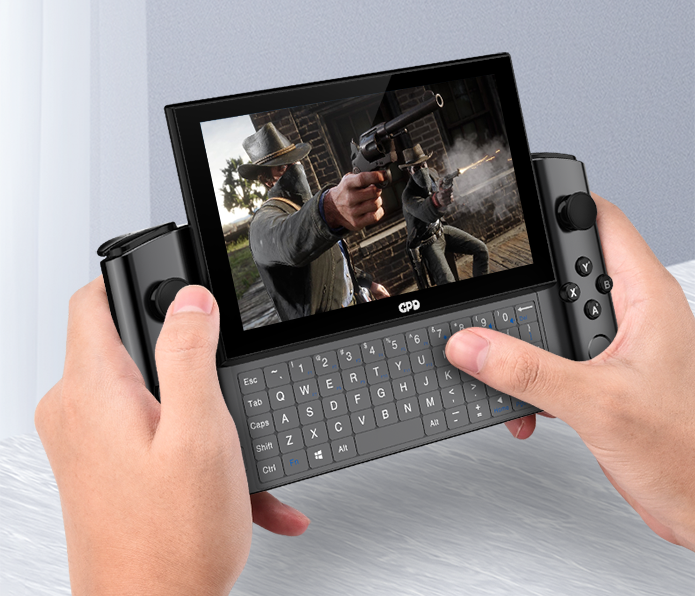

WIN 3 touch keyboard is hidden behind the screen and adopts the QWERTY full keyboard layout, which take advantage of the dual rumble motors. When the screen is slide open, the white backlight is on and user can experience haptic feedback while typing on it.

Why a touch keyboard? Most WIN devices handheld game console users reported that the keyboard is rarely used to play online games: they mainly us it for game account and password inputs. With an unibody handheld game console, if a physical keyboard is added, the body will be too thick and the internal structure design will be too complicated. WIN 3 adopts a thinner touch keyboard, which allows an optimised internal implementation and can free up more space for heat dissipation and batteries.

When playing games, the slider is usually closed because the keyboard is not used. However, sometimes, when you need to quickly press the ESC key to return to the game settings interface, it is troublesome to slide it open every time. In order to improve the experience, we added 2 customizable physical keys on the back of WIN 3, in order to allow the user who needs extra keys to use them with the “key binding customisation software” developed by GPD and built into the system to define a key on the keyboard.

When a user temporary lock the screen, it isn’t convenient to slide up the screen in order to only enter Windows password. So we added a fingerprint sensor to unlock the device, in the bottom right corner of the device. Unleach the system with one touch!

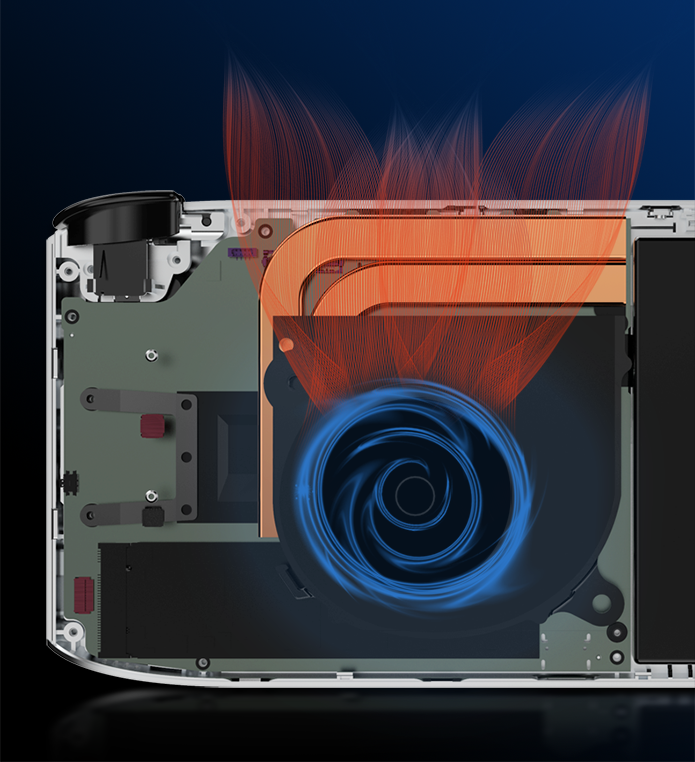

To improve further the heat dissipation system, WIN 3 adopts large desktop PC grade turbofan + dual heat pipe heat dissipation solution, with PWM control. When the internal temperature is lower than 40℃, the fan only turns on at 20%. When the internal temperature is higher than 40℃, the fan accelerates with 2% PWM increments each time, up to 100%. The air outlets almost occupy the entire top case, and the 8-hole channel allows the device to quickly discard heat. TDP is set with three threshold, 15-18W, 18-22W, 22-28W. Users can enter BIOS to set the TDP of their choice.

The top lid surface is sprayed in black matt and has curved edges, the middle is an 80×30mm hollow air inlet, and the handle part are made as a 5mm protruding design, which helps to avoid to block the air flow when it lays flat.

Tiger Lake-U in WIN 3 has a performance increase of 20% compared to Ice Lake-U of the previous generation, its graphics core performances has doubled and has 5 times the AI computing power of the previous generation. The following table is a comparison of the single-core/multi-core performance in Geekbench 5:

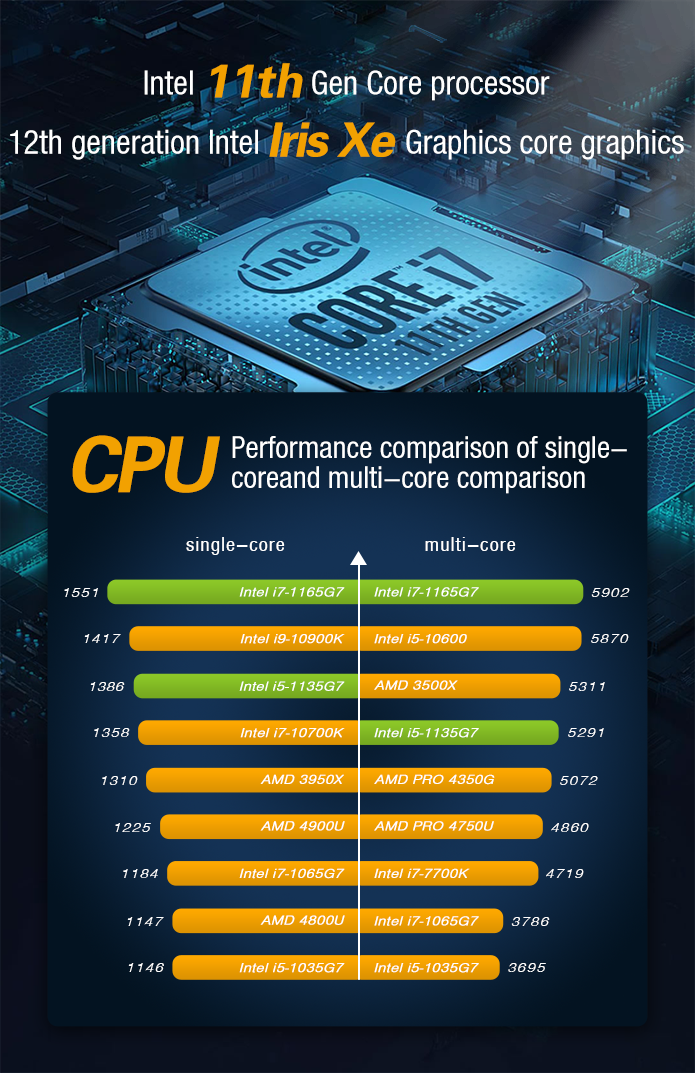

In terms of single-core performance comparison, i7-1165G7 surpasses desktop flagship processor i9-10900K; in terms of multi-core performance comparison, i7-1165G7 still beats desktop processor i5-10600.

WIN 3 integrates the 12th generation of Intel Iris Xe Graphics core, with 96 computing units, 8 cores per unit, for a total of 768 cores; its base frequency is 400MHz, the maximum dynamic frequency can reach up to 1300MHz, and it integrates 1MB L2 cache. The overall performances of the 96EU 1165G7 surpasses the NVIDIA GeForce MX350, while the 80EU 1135G7 also surpasses the NVIDIA GeForce MX350, from 28W.

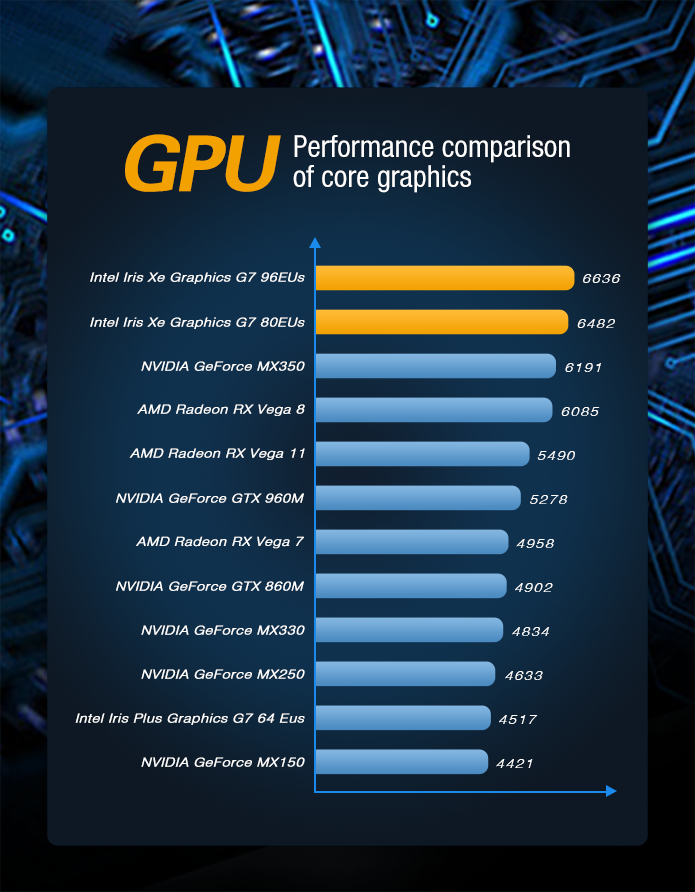

The following table shows the performance of several mainstream mobile graphics cards under 3DMark 11 at a resolution of 1280×720:

Users know that the MX100-MX400 series launched by NVIDIA are unique mobile GPU, managing heavy tasks mainly for light and thin devices. One of the criteria for testing the performance of the graphic core is the floating-point computing capability test, which includes half-precision test (FP16), single-precision test (FP32), and double-precision test (FP64). Compared to Nvidia, how does the lightweight standalone Intel Iris Xe Graphics G7 96EU performs? The following table is a comparison of the four most powerful mobile graphics cards on the current market:

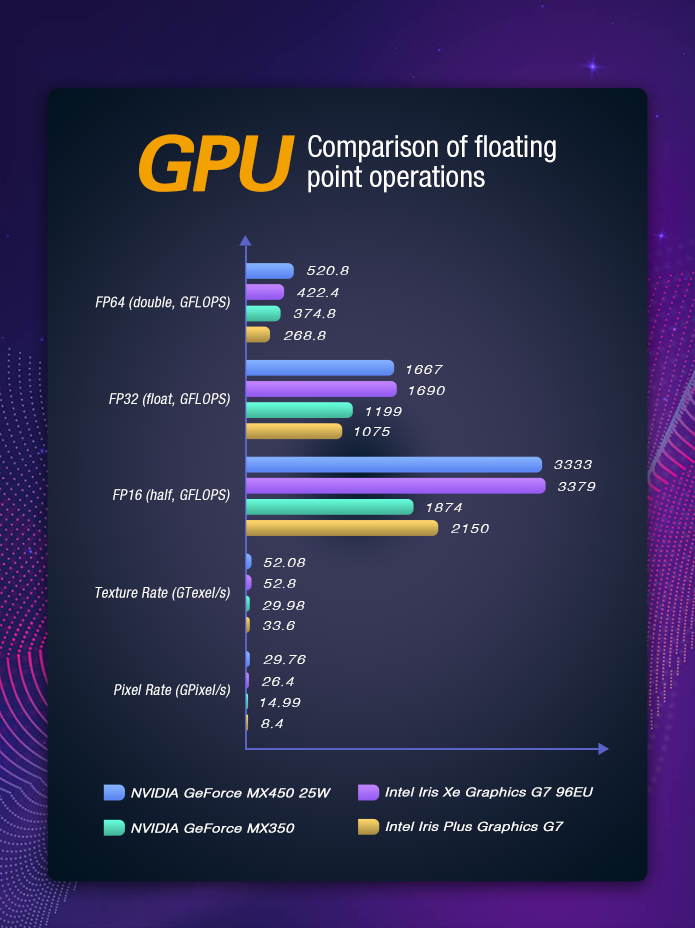

Intel Iris Xe Graphics G7 96EU surpasses NVIDIA GeForce MX450 (25W) in half-precision and single-precision floating-point operations and texture rate.

The Intel 11th-generation Tiger Lake-U processor increases the memory bandwidth to 86GB/s and supports the highest LPDDR4x 4267 memory to ensure the performance of the graphics core.

After testing, we found that the memory write speed of WIN 3 (Intel Core i7-1165G7) is twice faster than the HP EliteBook 845 G7 (AMD Ryzen 7 4800U), although both products have built-in 16GB dual-channel LPDDR4x 4266 memory.

We found that HP EliteBook 845 G7 will automatically reduce the frequency to LPDDR4 2666 MHz when the system is running. Looking at the Geekbench database, the comparison between i7-1165G7 and Ryzen 7 4700U shows that the memory bandwidth of the Intel processor is nearly 50% higher. Almost all ultrabooks based on AMD chipset are down-clocked to run at LPDDR4-2133 MHz to reduce latency.

Obviously, AMD has made a compromise for the 15W APU, which is to reduce the memory frequency under certain conditions. After all, the CPU, GPU, DDR, and SSD are all drawing power, the lack of it can lead to a decrease of the frequency. Using Prime95 to test memory stability, it was founded that HP EliteBook 845 G7 would crash instantly.

In a nutshell, we can draw as conclusion that AMD Ryzen 4000 series, with LPDDR4x 4266 memory, systematically has to run at a reduced frequency. Currently, LPDDR4x 4266 can only rely on the Intel 11th generation Tiger Lake-U processor to ensure the use of the 86GB/s memory bandwidth!

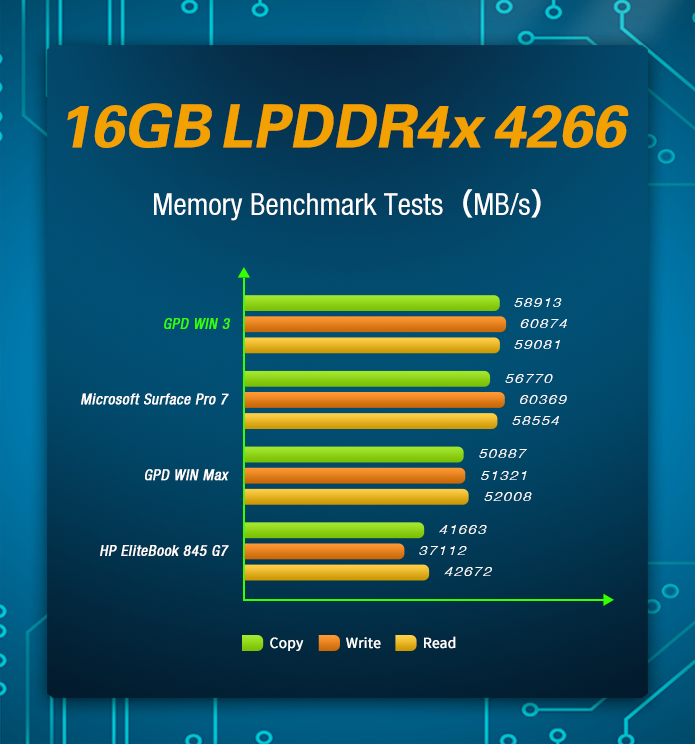

The following table shows the memory benchmark tests done on LPDDR4 3200, LPDDR4x 3733, LPDDR4x 4266:

* Scores are based on the read, write and copy, the corresponding products are all dual-channel devices.

In WIN 3’s built-in Intel 11th generation Tiger Lake-U processor, the biggest highlight is the integration of PCIe 4.0 interface specifications which offers a doubled bandwidth!

Currently, the sequential read/write of SSD with mainstream M.2 NVMe protocol interface is about 2000 to 3000MB/s. However, this is not the flash memory speed limit. It is limited by the interface bandwidth of PCIe 3.0×4, and the theoretical throughput limit is 3.938GB/s. The theoretical throughput limit of PCIe 4.0 reaches 7.877GB/s. Therefore, when you use PCIe 4.0 SSD on WIN 3, its speed will be doubled.

Tiger Lake-U series is currently the only embedded processor that can allows full access to the performance of PCIe 4 SSD. Meanwhile the competing AMD Ryzen 4000 series still only supports PCIe 3.0, Tiger Lake-Y only has a bus speed of 2GT/s OPI.

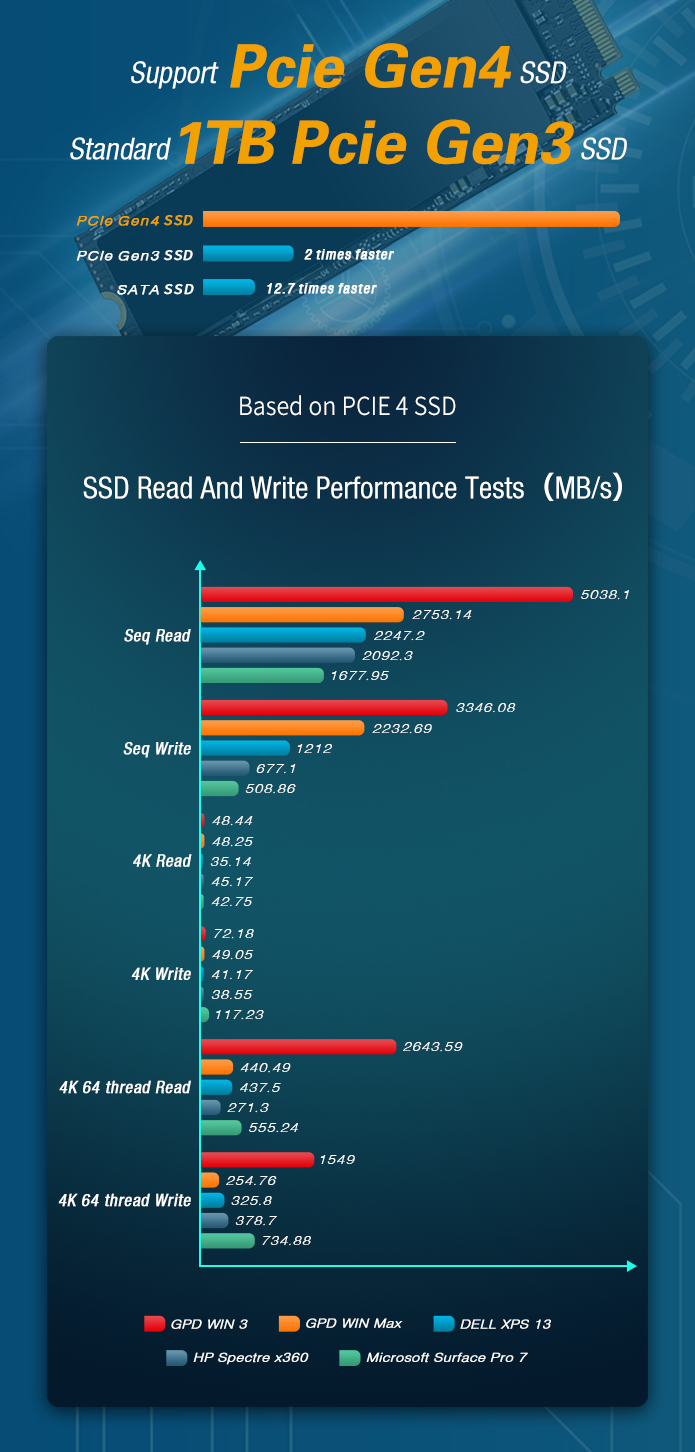

The image below depicts the WIN 3 tested read/write performance with a built-in Samsung 980 Pro SSD (support PCIe 4.0), compared to several other products:

* Test software: AS SSD Benchmark;
* Test environment: 1135G7, LPDDR4x 4266, Samsung 980 PRO 500GB;
* Different versions of AS SSD Benchmark test results are slightly different, and the heat dissipation will severely affect the read/write speed.
* The chart shows read and write speed on PCIe 4 SSD. The standard configuration for the shipped machine is PCIe 3 SSD. If you want to ensure to reach the speed of the SSD in the chart, please purchase PCIe 4 SSD and swap it by yourself.

It can be seen that the sequential read of Samsung 980 Pro 500GB exceeds 5000MB/s, the sequential write speed exceeds 3300MB/s, so the read speed does indeed exceeds Thunderbolt 4!

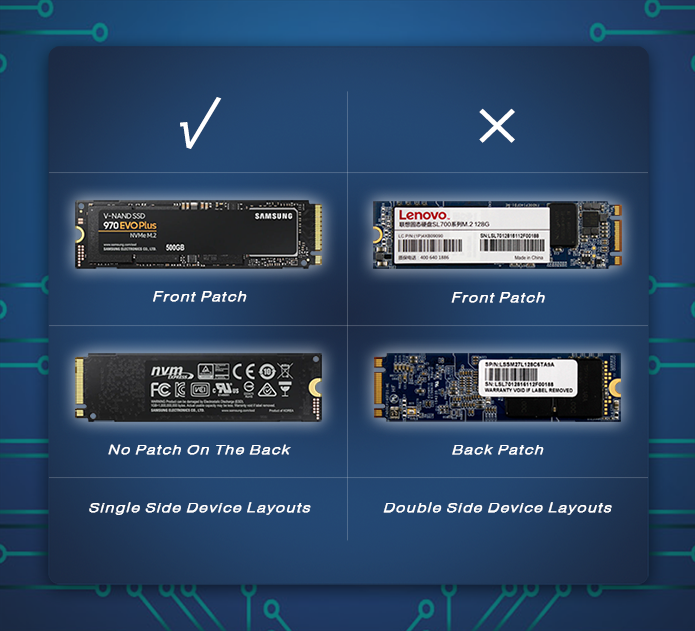

WIN 3 adopts M.2 NVMe / AHCI dual protocol interface, so no matter what kind of SSD you want to replace it with, it will work. However, due to space limit, WIN 3 only supports M.2 2280 single-side populated SSD, such as Samsung 980 PRO, while Lenovo NGFF SL700 can’t be supported. Please focus on it when purchasing a new SSD.

Another WIN 3 highlight is the integration of the latest Thunderbolt 4 interface, which natively supports USB 4, USB 3.2 Gen 2×2 (20Gb/s), HDMI, DisplayPort, RJ-45 network port, audio port, charging and other interface protocols, with backward compatibility with USB interface specifications 3.2/3.1/3.0/2.0/1.1. Thunderbolt 4 can be considered as having a full set of integrated interfaces.

The transfer rate of Ice Lake-U; the previous generation of Intel CPU; Thunderbolt 3 is 40Gbps, which includes one 8Gbps DisplayPort channel and four 8Gbps PCIe 3.0 channels. However, Thunderbolt 3 limits the maximum transfer rate supported by each connected device to 16Gbps (2GB/s). When you connect an external graphics dock, you can only use PCIe 3.0×2, and its bus DMI 3.0×4 can only provide 3.94GB/s bandwidth.

The transfer rate of Thunderbolt 4 is still 40Gbps, but the PCIe 4.0 bandwidth is doubled, and the maximum transfer rate supported by each connected device is increased to 32Gbps (4GB/s). The bus DMI 3.0×4 doubles to DMI 3.0×8, which can provide a total bandwidth of about 7.86 GB/s. Thus, when playing games with Thunderbolt 4 external eGFX (graphics card docking station), the performance of the external graphics card will be fully utilized because the bus bandwidth is doubled.

The Tiger Lake-Y series processors, although also integrated with Thunderbolt 4, can only provide 3.93GB/s bandwidth because the bus speed is only 2GT/s.

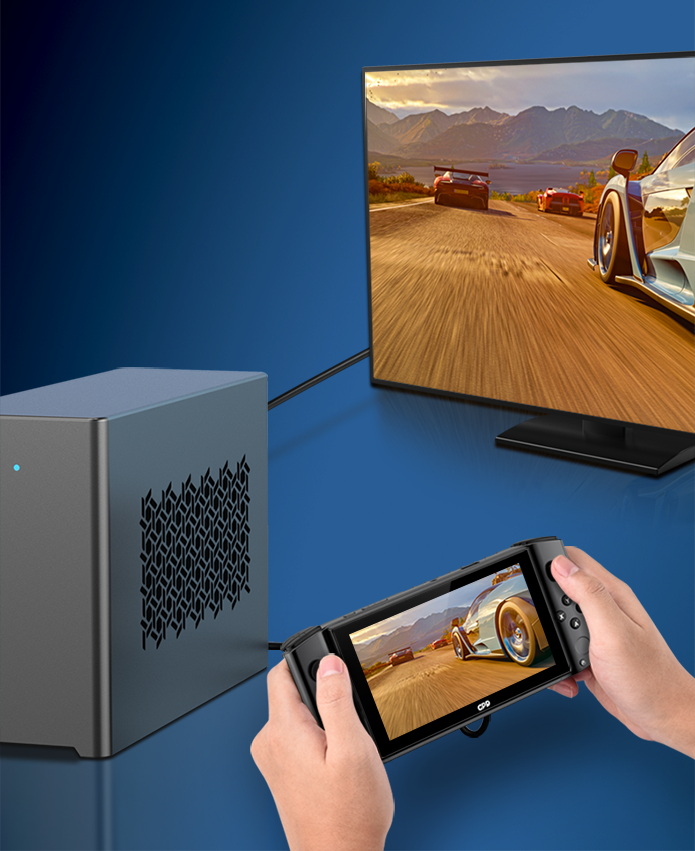

Through the external graphics dock, whether using the main screen or an external monitor, the game frame rate is greatly increased.

*Note: eGFX is a standard defined by Intel, which includes a complete set of external graphics solutions, such as power supply, motherboard, graphics card, interface, etc. The term eGPU only represents the graphics card. At present, retail platforms do not call eGFX uniformly. There are eGPU, graphics card dock, external graphic

In addition to external eGFX devices, the Thunderbolt 4 interface of WIN 3 supports power adapters based on PD 2.0/3.0 protocol and 15V/20V voltage, which is very scalable. For instance:

1. Any PD2.0/30 protocol power adapter with charging voltage up to 15V/20V on the market can charge WIN 3.

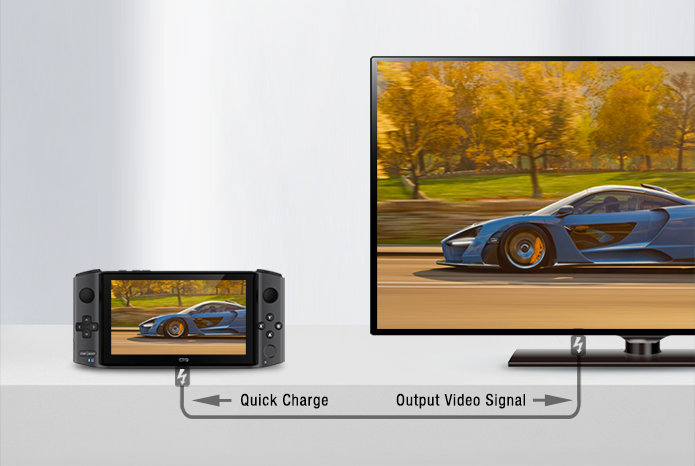

2. Through the Thunderbolt 4 interface, while outputting high-definition video signals to any monitor, the monitor can charge WIN 3 and as the reverse!

3. Through Thunderbolt 4 interface, WIN 3 supports the connection of 2 4K monitors or 1 8K monitor.

4. In the future, PCIe Gen 4 SSD external mobile hard disk or USB 4 flash disk can be connected to provide convenience for professional photographers to transfer large m2ts video files!

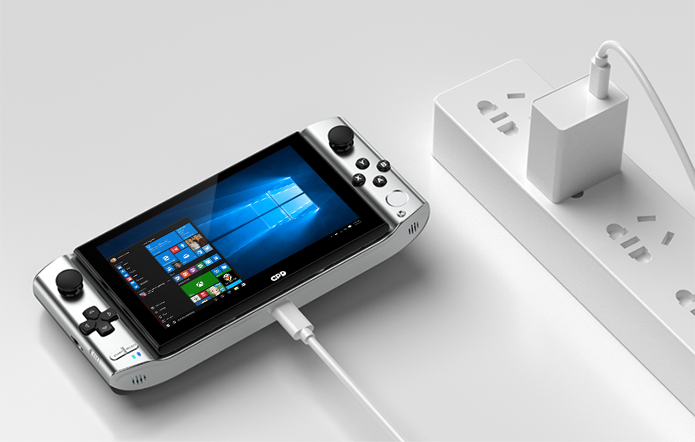

WIN 3 provides 65W PD 2.0 protocol fast charging, which can be used through the Thunderbolt 4 interface from Type C interface of the botton side of the device. The device is fully charge after about 1.5 hours, the battery life while playing heavy games can reach up to 2 to 3 hours, for a moderate use, around 6 to 8 hours, and for light use up to 11 hours.

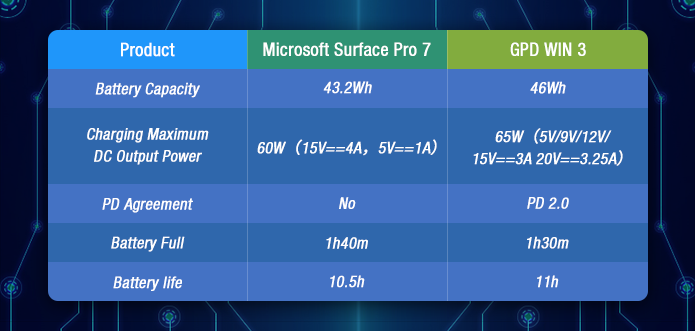

The following table depicts the comparison between charging performance on the WIN 3 and the one on the Microsoft Surface Pro 7:

* Note on battery life testing:
The test involves draining a fully charged battery during normal use, i.e., both active use and standby. The active parts include:
(1) Web browsing test of accessing 8 mainstream websites through multiple open tabs
(2) Using Microsoft Word, PowerPoint, Excel, and Outlook for productivity testing
(3) Applications on the device running for a period of time in an idle state
All settings during the test are default values, except for the following settings: the screen brightness is set to 150 nits, and the automatic brightness adjustment is disabled; Wi-Fi stays connected. Battery life will vary significantly due to device settings, usage, and other factors.

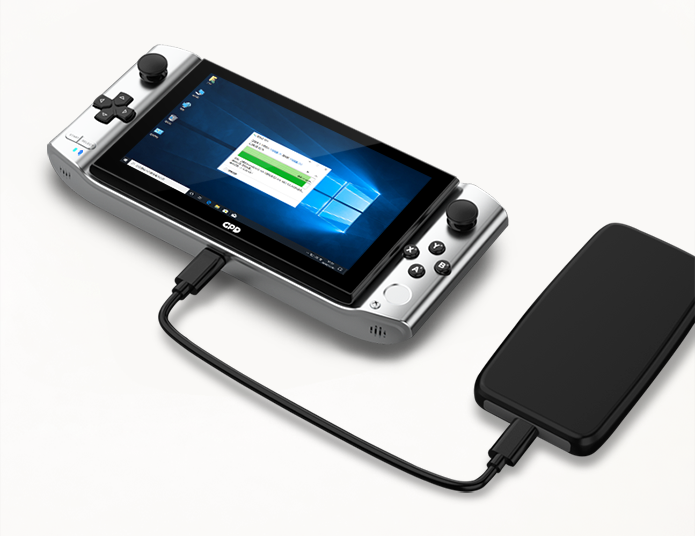

In addition to charging WIN 3, the standard 65W fast charge also supports charging for any mobile phone, tablet, and laptop with a USB Type-C interface, and that is compatible with PD protocol.

Although GPD WIN 2 previously crowdfunded on Indiegogo made up for the shortcomings of the first generation device, it has slightly insufficient performance, heat dissipation, appearance, and ergonomics. At the request of many WIN series users, we started to develop WIN 3 last year. The reason for launching crowdfunding on Indiegogo is mainly due to the high cost of WIN 3 research and development, mold and material procurement. All the funds we will raise will be invested in the mass production of this product. We believe that this product will touch all players who love handheld game consoles, and it will be the first choice for a PC gaming handheld console since a long time. We hope you will support this project. For games, let’s make achievement and progress together!

We are a company specialized in handheld game devices and office devices in Shenzhen, China. GPD is our brand, and its full name is GamePad Digital, which comes from the founder’s idea to make product for gamers. GPD is committed in providing users with well-customized products and services.

First, we would like to thank everyone that decided to support us by participating again in the crowdfunding campaign for our products. It is thanks to your contribution and continuous support that we can keep improve our devices. We also want to thanks all the new users who choose to support us for the first time in this large-scale crowdfunding. Without your trust and support, there would be no mass production and no new product launch.

1. Do the funds raised this time include shipping fees?

The raised funds include international express freight and remote area surcharges, but do not include taxes incurred when entering the destination country. Generally, taxes of 21% will be incurred when entering EU countries; taxes of about 10% will be incurred when entering Japan; taxes of over $800 will be incurred when entering the United States; taxes in other countries may be higher.

2. What kind of after-sales service will users participating in crowdfunding receive?

Crowdfunding users enjoy the same warranty rights as users who purchase the device when it is available in the retail market. If you are not satisfied with the device, you can return it within one week after you received it, but the original shipping cost paid by us in order to ship the device to you would be deducted from the refund.

Please note aswell that the shipping and packaging costs incurred by the return will be at your expense. Please ship via the local postal express. Other international logistics will incur tariffs ranging from 20% to 30% of the value of the goods when entering China. GPD will not bear this part of the cost.

3. What if the crowdfunding fails to reach the target amount?

If the crowdfunding fails to reach the target amount, we will issue a refund, and we will seek other means of financing to ensure the smooth progress of R&D and mass production. We hope that the users who loved our previous devices and love this handheld game console will continue to follow on the progress of our project.

4. What should you do if your question is not answered in time?

If your question is not answered in time, please refer to the following contact info:

For product technical issues during crowdfunding, please email to: Kendyz@gpd.hk

About the product delivery progress after the crowdfunding, please email to: Kendyz@gpd.hk

About quality problems or returns after receiving the product, please email to: Kendyz@gpd.hk

For inquiries about sales distribution or agency, please email to: Sales02@gpd.hk

When sending an email to us, please make sure to send it from the email address in your crowdfunding order, and we will arrange for the relevant staff to reply you.

supporters will be rewarded first.

Product specifications may change during the crowdfunding to ensure that the product is as perfect as possible. If there is a change in specifications, we will notify you as soon as possible in the “Update” section of the crowdfunding page.

The product will come with CE-RoHS, FCC, CCC, JATE, MIC, and other international certifications.

We will try our best to issue rewards at the agreed time. However, due to possible supply chain and quality control issues, and other elements on which we might not have control on, the payment may be postponed. We appreciate your understanding!
